Eglobal Mini Gamer PC Intel Core i7 12700H GTX3050 8G DDR4 MAX 64G HDMI TYPE-C Gaming Computer WIFI
Product Highlights
- Graphics eligible Nvidia GTX3050 VRAM GDDR6 4G.
- 2 x SODIMM DDR4 memory slot up to 64GB more powerful performance. improve work efficiency and give you a smooth experience.

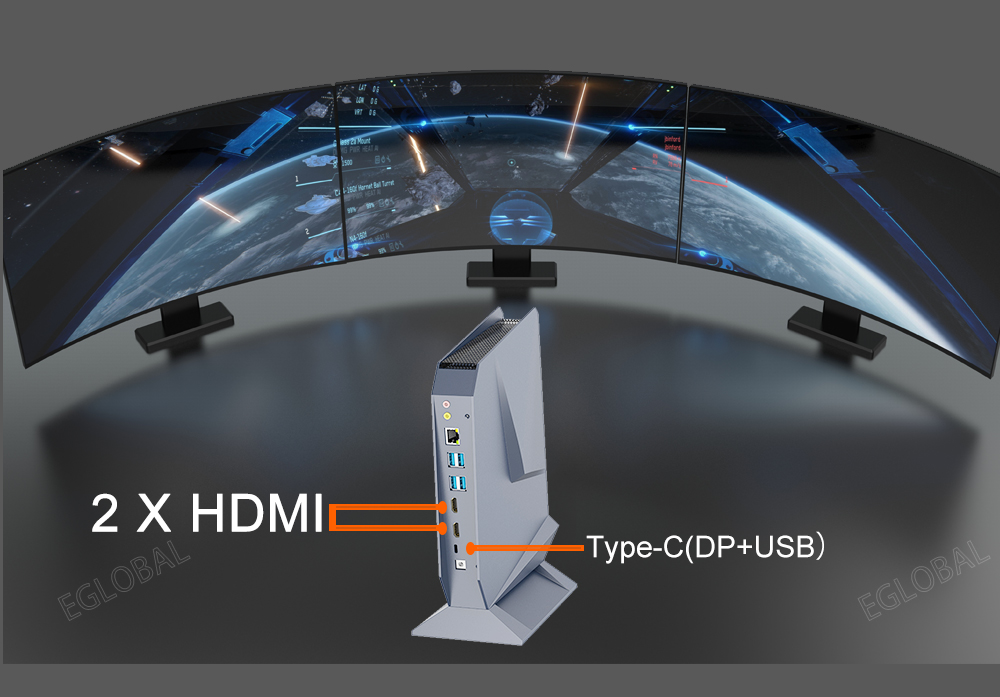

- Support 2*HDMI and Type-C triple display output synchronously.
- With a silent copper cooling fan, work as long as 24 hours.
- Support PXE, Auto Power On, RTC, Wake On LAN.
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
No RAM
- No Storage
- Built-in WIFI/Bluetooth without antenna
- Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
The Package includes:
1 * Mini PC Device

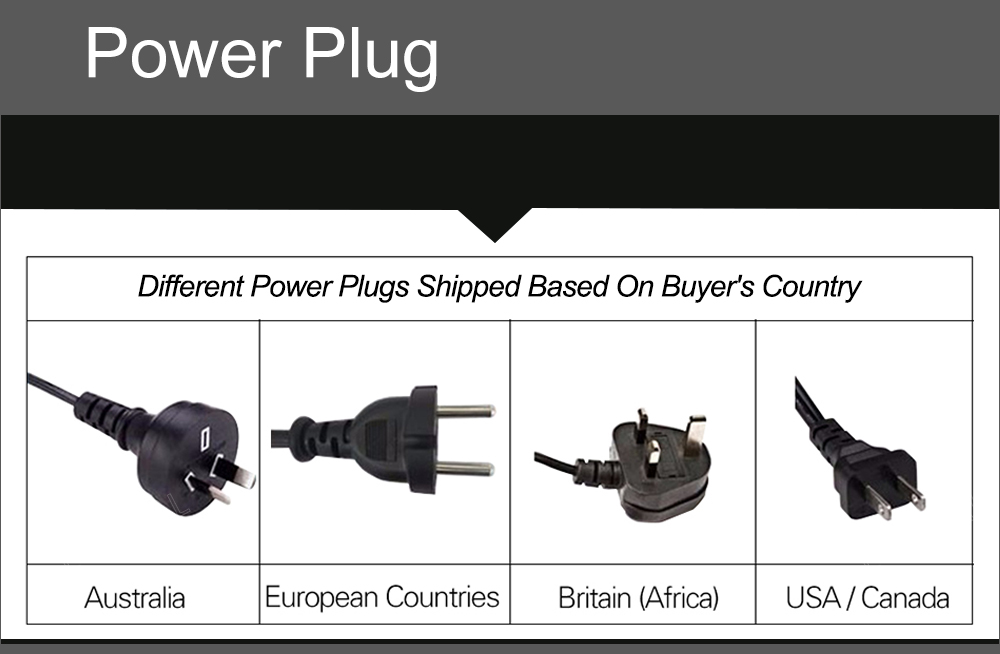

1 * EU/AM/BR/AU standard Power Adapter
1 * Bracket
1 * screw Bag
1 * HDMI Cable
|
Basic Information
|
|
CPU
|
Intel Alder Lake 12th Gen Intel® Core™ i7-12700H 14 cores 20 threads 4.70GHz 24 MB Intel® Smart Cache 45W TDP Intel® Iris® Xe Graphics eligible
|
|
TDP
|
45W
|
|
Motherboard
|
210mm x 190mm
|
|
Chipset
|
Intel Alder Lake
|
|
Memory
|
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB
DDR4 2133MHz/2400MHz/2666MHz/3200MHZ
|
|
OS
|
Windows10/11/Linux
|
|
PXE
|
Yes
|
|
Network
|
Onboard Intel 2.5G Network Connection
|
|
Video
|
Intel®UHD Graphics

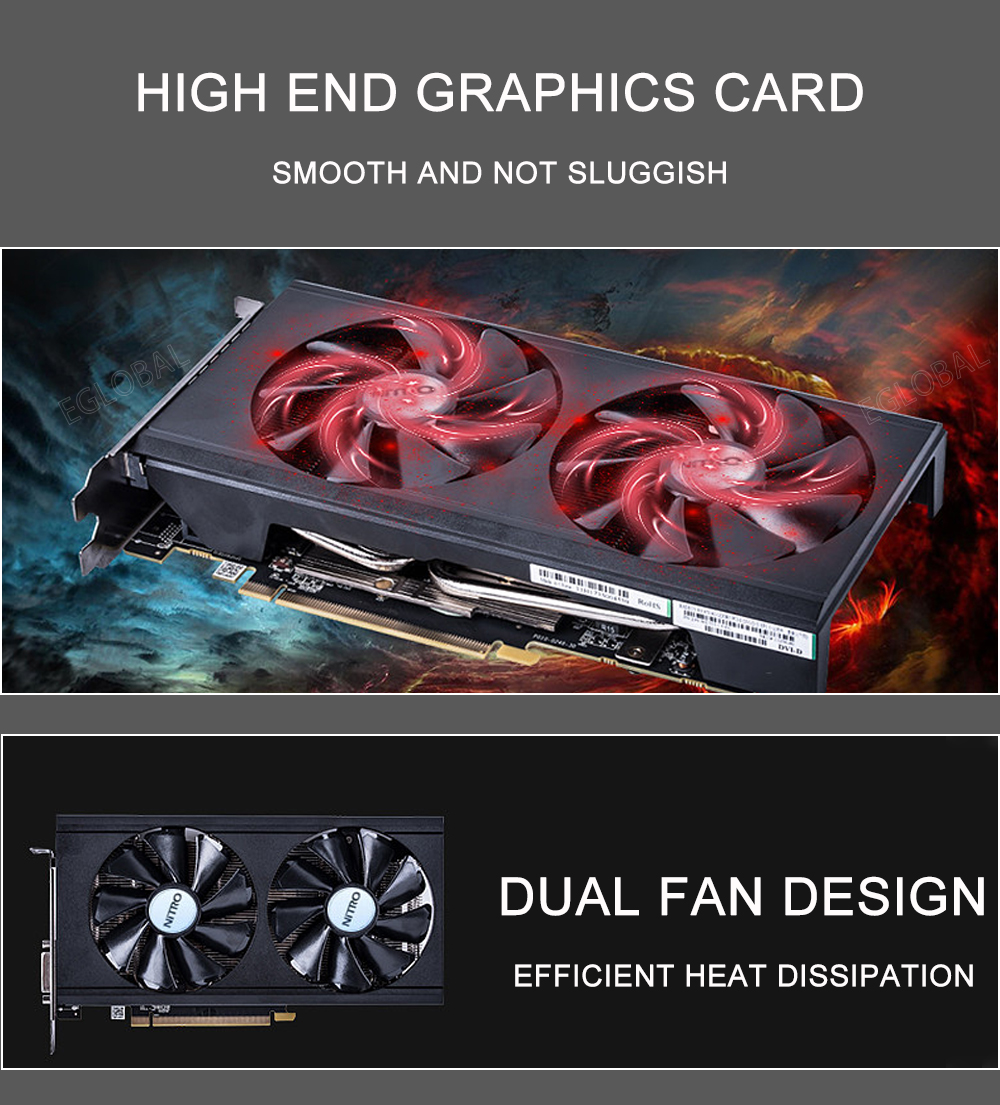

Nvidia RTX3050 VRAM GDDR6 4G
|
|

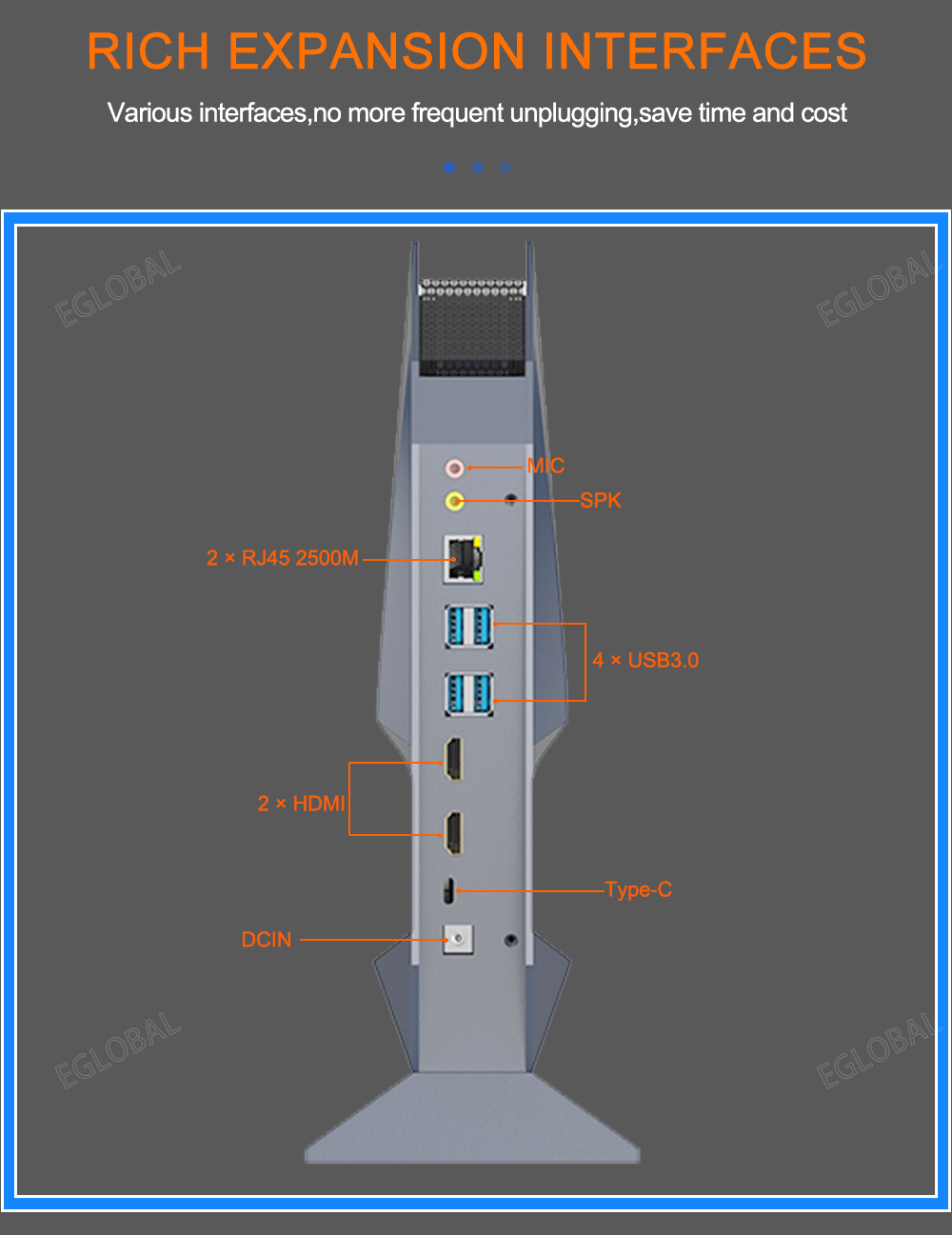

Input/output port
|
|
Switch
|
1 x Power On/Off Switch
|
|
Power
|
1 × DC（55*25）19V
1 × ATX 8Pin 19V（Optional）
|
|
USB
|
4 × USB3.0
2 x USB2.0
|
|
Display
|
1 × HDMI Out 1.4
1 × HDMI Out 2.0 4K 60HZ
1 × Type-C (DP+USB）4K 60HZ
|
|
LAN
|
1 × RJ45 intel i225 2500M
|
|
Audio
|
1 × SPK
1 × MIC
|
|
Storage
|
|
MSATA
|

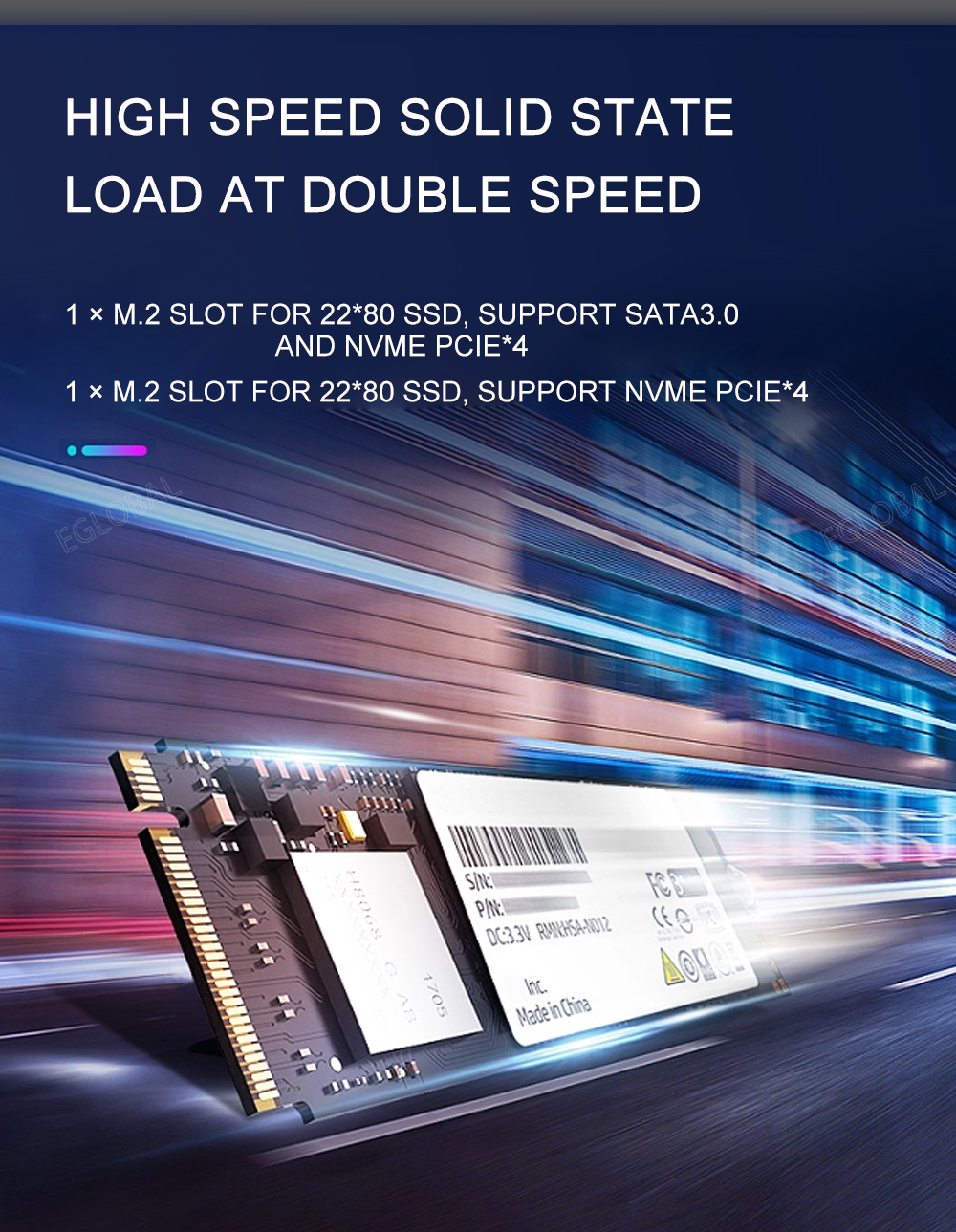

1 × M.2 slot for 22*80 SSD, support SATA3.0 and NVME PCIE*4
1 × M.2 slot for 22*80 SSD, support NVME PCIE*4
|
|
SATA
|
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
|
|
Wi-Fi
|
|
Module
|
1×M.2 NGFF 2230 slot for Wifi (802.11 b/g/n/AC/AX )module and Bluetooth (4.0 or above)module
|
|
Antenna
|
2 x inner RF cables and without external antenna
|
|
Power and Working Environment
|
|
Input
|
DC100-240V AC/50-60Hz
|
|
Output
|
DC +19V/7.89A
|
|
Operating Temperature
|
-10/+50 Centigrade
|
|
Storage Temperature
|
-20/+85Centigrade
|
|
Relative Humidity
|
5%~95% @30°C(non-condensing)
|
|

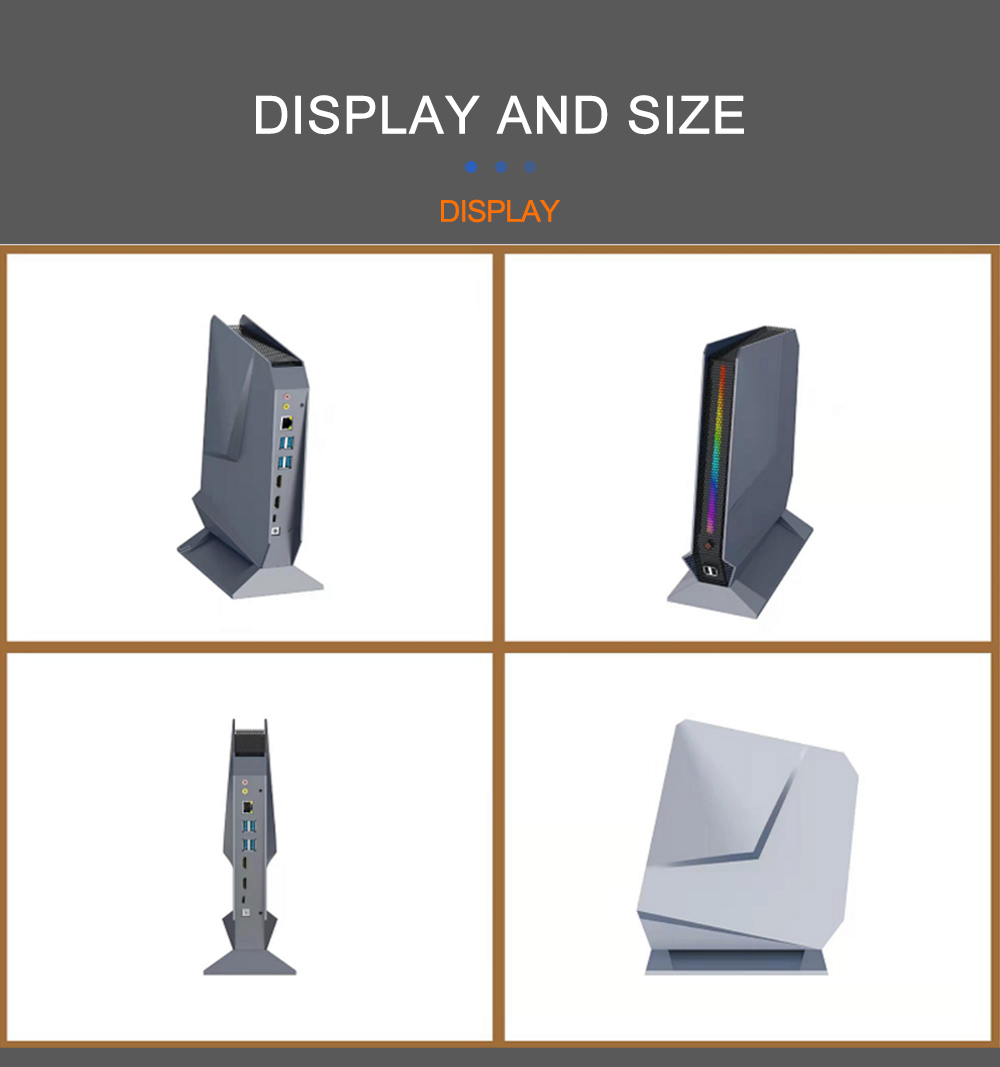

Product Dimension & Details
|
|

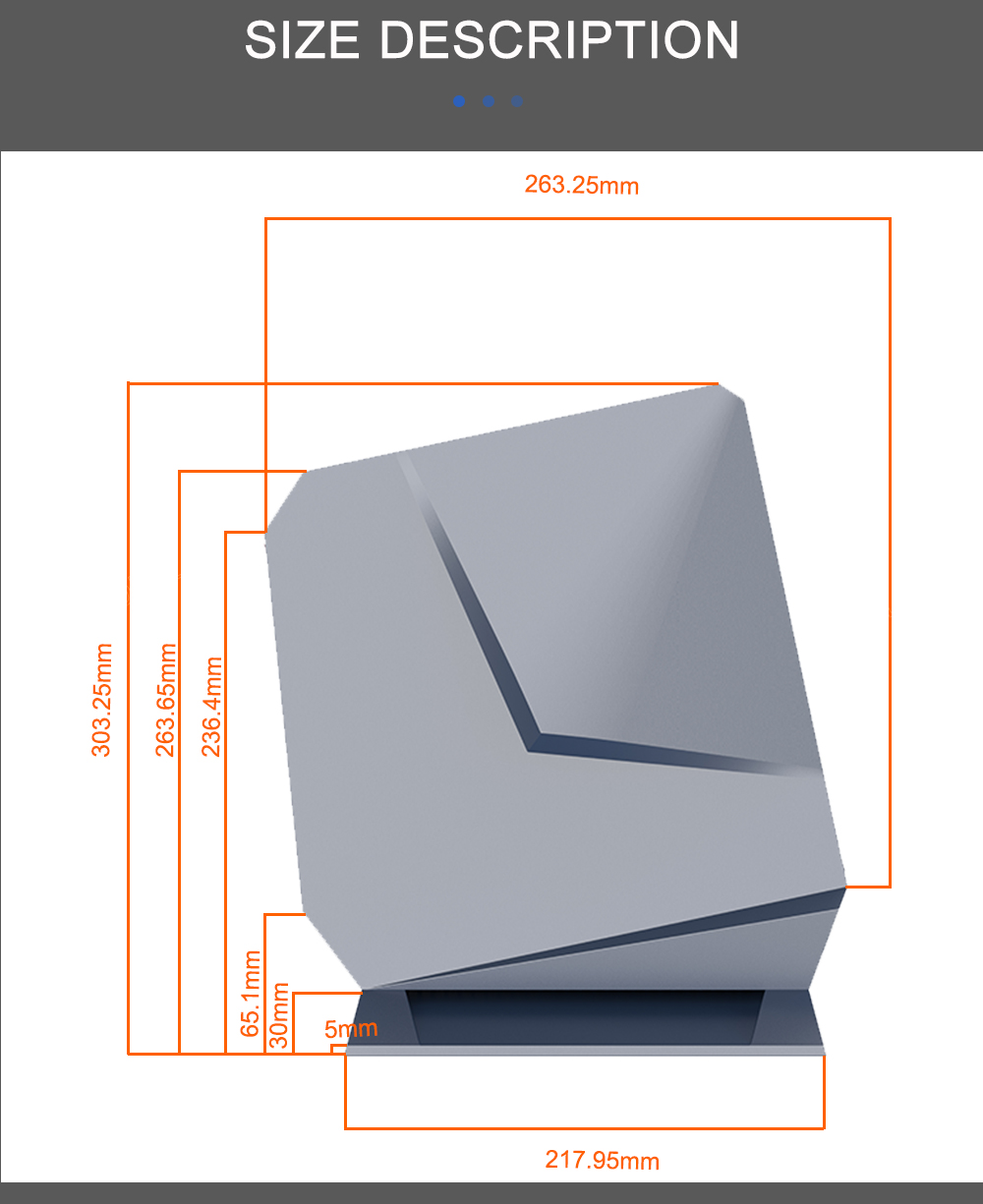

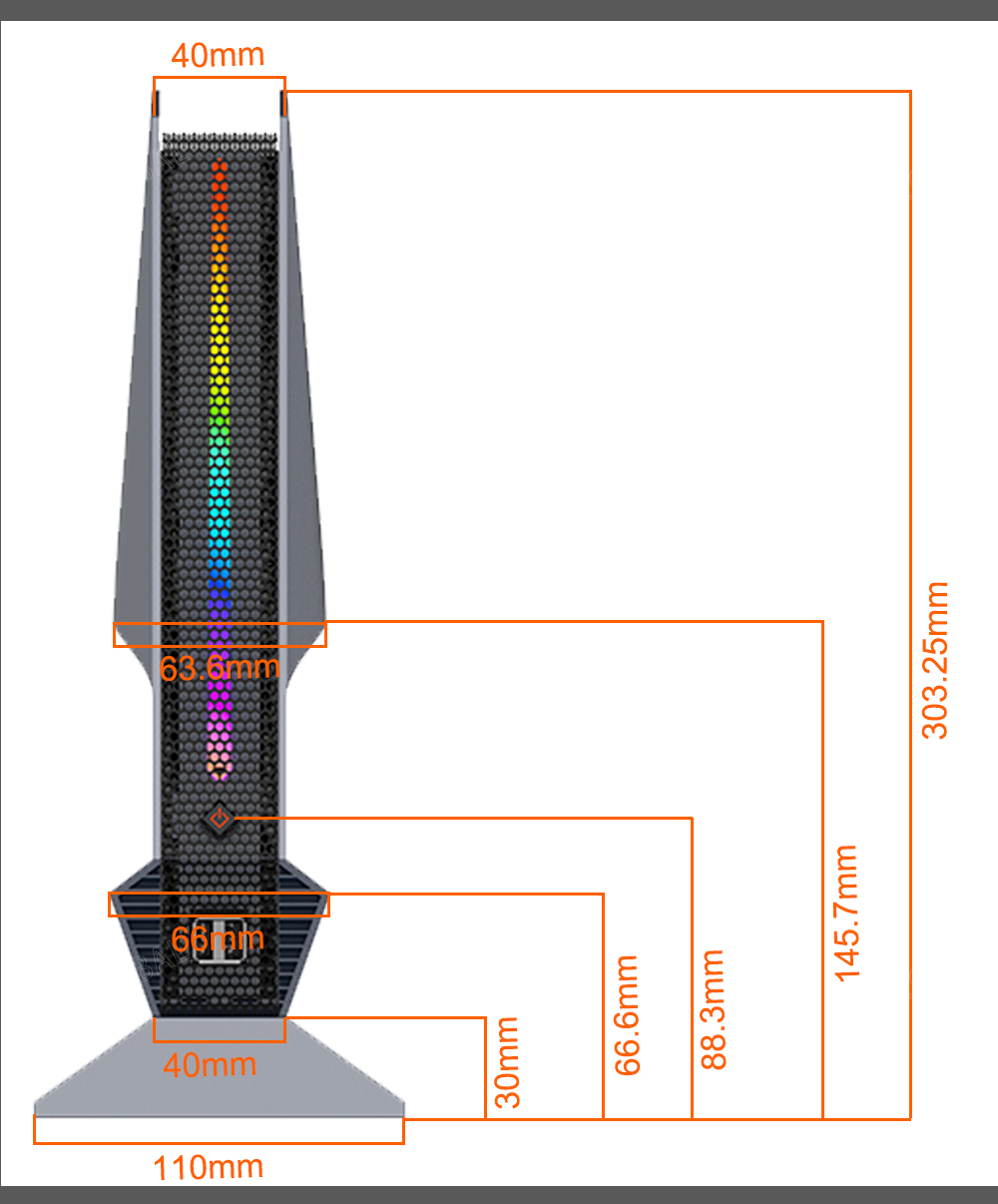

Size
|
263*303*40mm
|
|
Weight
|
NW：1.37KG GW：3.2KG
|
|
Shell
|
Silver gray aluminum alloy(any customized color for bulk order)
|
|
Cooling Mode
|
All-copper turbo fan
|
|
Functions
|
PXE, Auto Power On, RTC, Wake On LAN
|
|

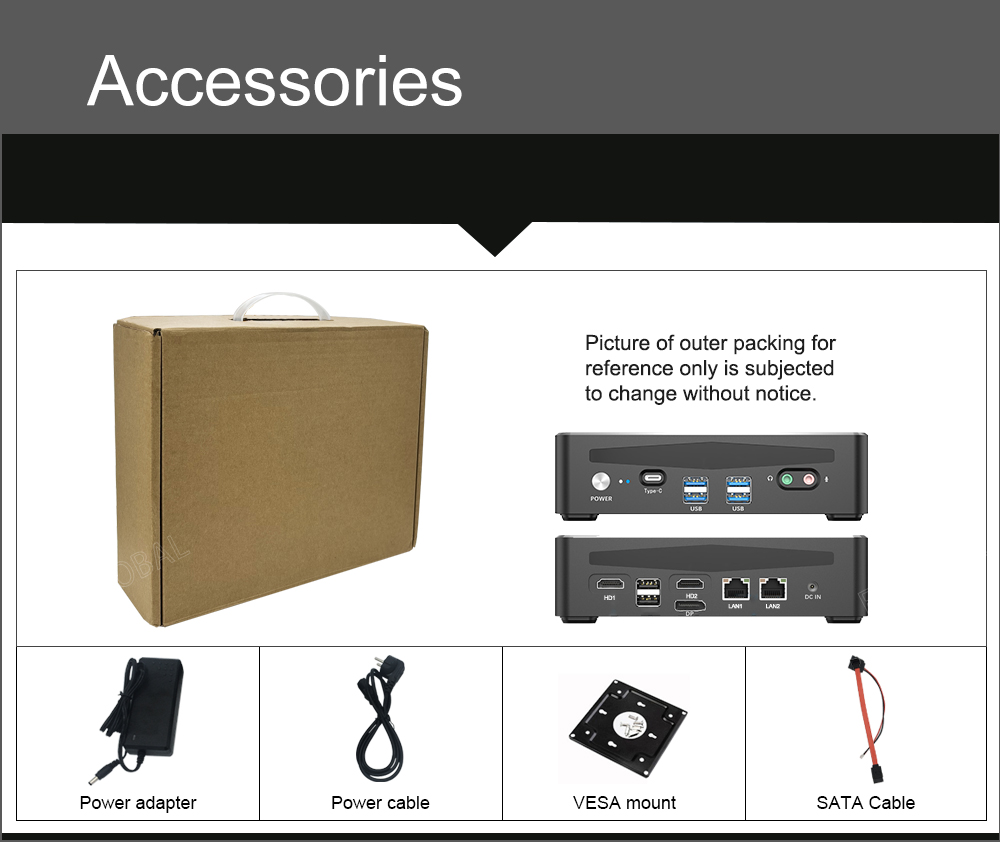

Package Content
|
|
|
Standard
|
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA Cable
|
|
Optional
|
1xHDMI cable, 1xUser Manual
|
