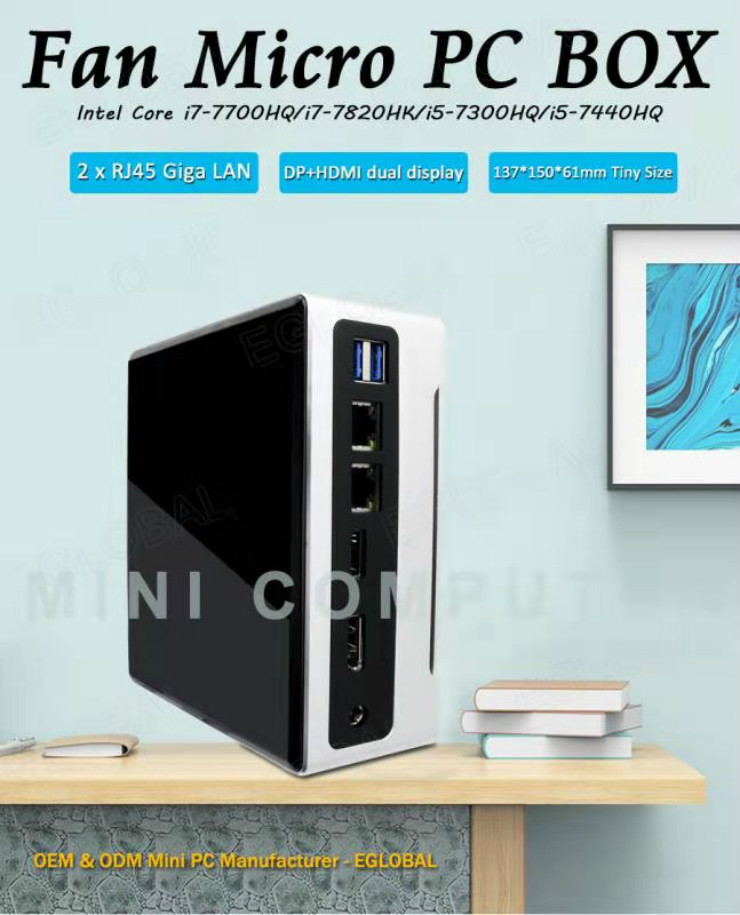

Eglobal Core i5 7300HQ HD 630 Barebone Windows TV BOX Dual Lan HDMI DP Wifi Fan Micro PC
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- AC WIFI with Dual Antennas
- Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
Product Highlight
- Smart tiny case 137x150x61mm hold by a hand, but powerful stronger performance.
- Rich interfaces: USB, DP, HDMI, 2 LAN, MIC, SPK, etc. to connect more devices.
- Onboard an ultra-quiet aluminum cooling fan for heat dissipation can keep the computer steady working long time.
- 2xSODIMM DDR4 memory slot up to 64GB more fast speed improve work efficiency and have a smooth experience.
- Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
|
Basic Information |
|
CPU |
Onboard Intel Kaby Lake Intel Core i5-7300HQ Processor, 6M Cache, 2.50GHz up to 3.50GHz (Turbo boost Technology) Quad Cores 4 Threads TDP 45W Intel® HD Graphics 630. |
|
TDP |
45W |
|
Level 2 Cache |
Depend on CPU |
|
Motherboard |
140 x 130mm customized size |
|
Chipset |
Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5910 - 100 Series/C230 Series |
|
Memory |
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB
DDR4-2400, LPDDR3-2133, DDR3L-1600 |
|
OS |
Windows 10/Linux |
|
PXE |
YES |
|
Audio |
Intel High Definition Audio Controller |
|
Network |
2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Intel® HD Graphics 630 |
|
Input/output port |
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x Power In |
|
USB |
6 x USB3.0 |
|
Display |
1 x DP, 1 x HDMI |
|
LAN |
2 x RJ45 Giga LAN |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s
1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA), support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x M.2 NGFF 2230 slot for Wi-Fi & Bluetooth module |
|
Antenna |
2 x inner RF cables and without external antenna |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 19V/5A |
|
Operating Temperature |
0/70 Centigrade |
|
Relative Humidity |
10%~85% |
|
Product Dimension & Details |
|
Size |
137*150*61mm |
|
Weight |
Net 0.9kg, Gross 1.4kg |
|
Shell |
Black color PVP top and Silver aluminum alloy body |
|
Cooling Mode |
An ultra-quiet aluminum cooling fan |
|
Functions |
PXE, Power On AC, RTC |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
Optional |
1xHDMI cable, 1xUser Manual |
 |
|
|
