EGLOBAL New Arrival 6 RJ45 Giga LAN industrial Mini PC core i5 4200U Fanless dual COM desktop pc
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- AC WIFI with Dual Antennas
- Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
Product Highlight
- Brushed Full Aluminum Alloy Black color shell, fanless system without cooling fan, no any noise, work as long as 24 hours.
- Intel Celeron/4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU for optional.
- 6 x Intel i201/i211 Gigabit RJ45 LANs and 2 x RS232 COM ports.
- Can install MSATA SSD+2.5” SATA HDD together.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi.
- Low consumption can save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
|
Basic Information: |
|
CPU |
Onboard Intel Haswell 14nm Intel Core i5-4200U 1.6GHz Max 2.60GHz Dual Core Four Threads 3MB cache TDP 15W Intel® HD Graphics 4400. |
|
TDP |
Refer to CPU |
|
Motherboard |
150 x 150mm customized size |
|
BOIS |
American Megatrends Inc.5.12 |
|
Chipset |
Intel Sunrise Point-LP, Intel Kaby Lake-U |
|
Memory |
1 x SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB/16GB(Intel Celeron/Core 4th/5th/6th/7th Gen CPU)
1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB(Intel Core 8th Gen CPU) |
|
OS |
Windows® 7/8/10, WES 7/10, LINUX |
|
PXE |
YES |
|
Audio |
Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller |
|
Network |
Intel(R) i210/i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Refer to CPU |
|
Input/output port |
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
1 x Power LED, 1 x HDD LED |
|
USB |
4 x USB3.0 |
|
Display |
1 x HDMI |
|
LAN |
6 x RJ45 Giga LAN |
|
COM |
1 x DB9 RS232 COM, 1 x RJ45 RS232 COM |
|
SIM |
1 x embedded SIM card slot onboard |
|
Audio |
1 x MIC, 1 x SPK |
|
Others |
1 x Reset button |
|
Storage |
|
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol) |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 12V/5A |
|
Operating Temperature |
-20/+60 Centigrade |
|
Storage Temperature |
-30/+70 Centigrade |
|
Relative Humidity |
10%~90%@30 Centigrade(non-condensing) |
|
Product Dimension & Details |
|
Size |
170*150*45mm |
|
Weight |
Net 1.35kg, Gross 2.0kg |
|
Shell |
Black color aluminum alloy(any customized color for bulk order) |
|

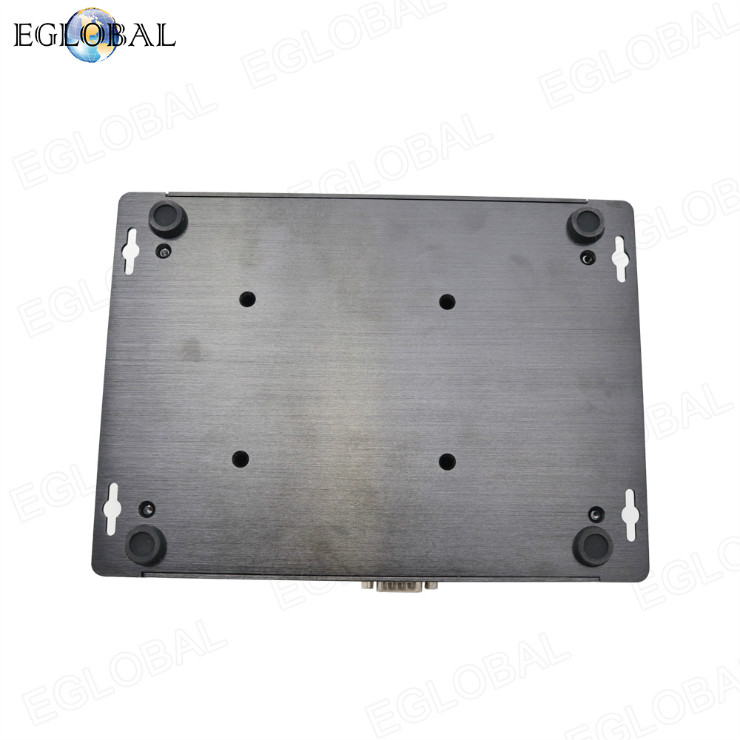

Mounting |
4 mounting holes on case |
|
Cooling Mode |
Fanless |
|
Functions |
Watchdog, AWAL, RTC, WOL |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
|
|
|
