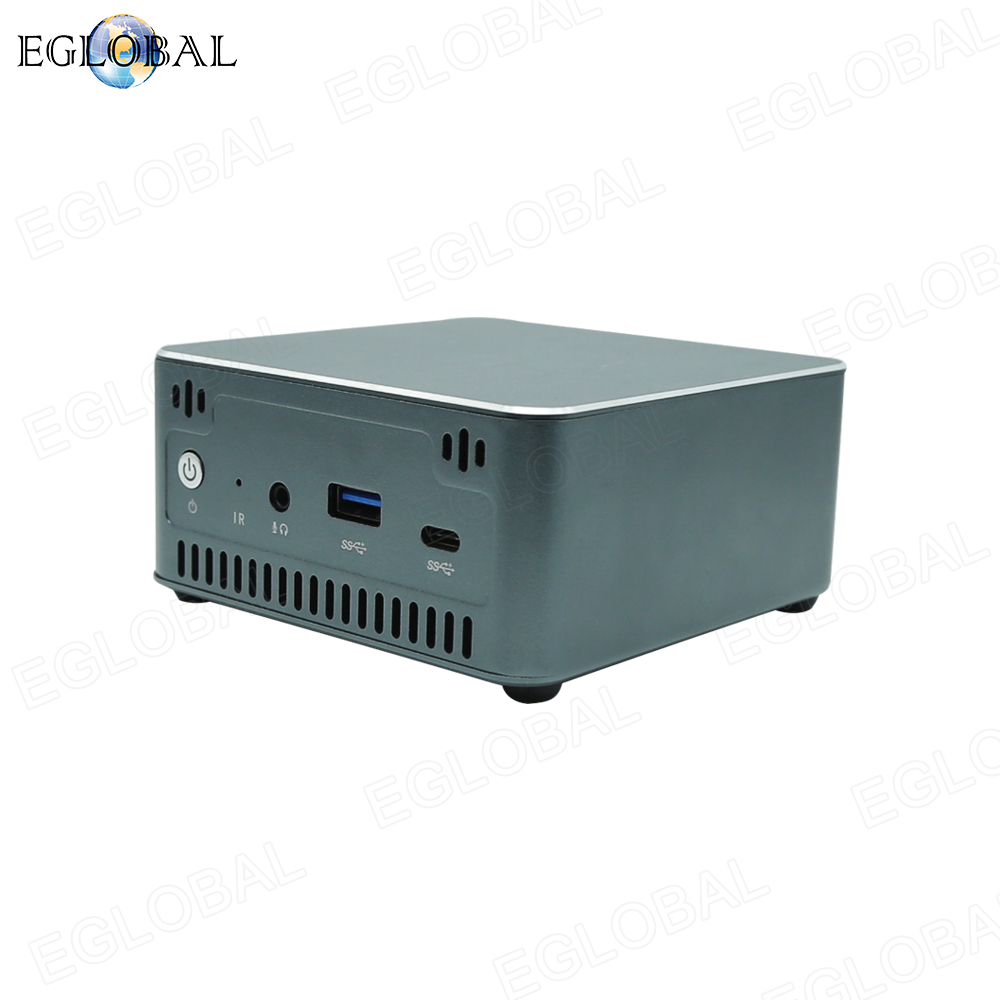

Eglobal New arrival Mini Gaming PC intel core i7 7820HK Quad core 8threads computer 8M cache
- Compact motherboard design, Intelligent and stable cooling without noise and pretty full
aluminum alloy shell.
- Support DP and HDMI dual display output synchronously, 4K HD player.
- Support dual channel DDR4 2400/2666 RAM max 64GB and Intel SOC Express Chipset.
- Shockproof, anti-fall, long-term stable and reliable operation, support M.2 NVME high-speed SSD.
- Strong performance, can replace a large amount of work on the desktop, such as 3D design
production, graphic design, online store offiffiffice applications.
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- AC WIFI with Dual Antennas
-Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)
|
Basic Information: |
|
CPU |
Onboard Intel Core i5-7300HQ / Intel Core i7-7820HK |
|
BIOS |
AMI BIOS, ACPI supported |
|
TDP |
45W |
|
Chipset |
Intel Kaby Lake |
|
Memory |
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB
DDR4-2400/2666, LPDDR3-2133 |
|
OS |
Windows 10/Linux |
|
PXE |
YES |
|
Audio |
ALC892 sound chip, 6-channel |
|
Network |
Onboard RTL 8111DL 10/100/1000 BaseT LAN |
|
Video |
Intel® HD Graphics 630 |
|
Input/output port |
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
1 x LED |
|
USB |
6 x USB3.0 |
|
USB-C |
1 x Type-C USB3.0 |
|
Display |
1 x DP, 1 x HDMI |
|
LAN |
1 x RJ45 Giga LAN |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M.2 slot SSD, support 6Gb/s, support M.2 NVME |
|
Wi-Fi |
|
|
Module |
1 x M.2 PCIE slot for Wi-Fi & Bluetooth module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/5A |
|
Operating Temperature |
0°C~70°C (32°F~140°F) |
|
Storage Temperature |
-20°C~80°C (-68°F~176°F) |
|
Relative Humidity |
10%~90% (non-condensing) |
|
Product Dimension & Details |
|
Size |
160*150*65mm |
|
Weight |
Net 0.8kg, Gross 1.2kg |
|
Shell |
Sliver color aluminum alloy |
|
Cooling Mode |
With a copper cooling fan |
|
Function |
Auto Power On |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xHDMI cable |
|
Optional |
1xUser Manual |
