Eglobal new small computer intel celeron J1900 dual rs232 cheap mini pc
♦22nm 2M Cache Bay Trail-D Intel® Celeron® CPU J1900 processor
♦ AIl alloy chassis, compact structure, light weight, flexible installation
♦ 1*VGA and 1*HDMI display port
♦ 2*Gigabit Ethernet port, supports Wake On LAN
♦ Rich I/O: 1*Switch ON/OFF, 3*USB2.0, 1*USB3.0, 2*RS232 Ports ,1*VGA, 1*HDMI, 1* DC IN, 2*LAN (RJ-45), 1*MIC, 1*SPK port
♦ Packing list: 1*Mini PC device, 1*EU/AM/BR/AU Power Adapter, 2*WiFi antennas, 1*Warranty Card, 1*CD Driver, 1*VESA Mount & Screws
♦ CE, FCC, ROHS, BIS, Energy Star certification
Specifications
|
General |
|
CPU |
Onboard Intel J1900 2.0GHz Quad Core Four Thread Max 2.41GHz(Turbo boost Technology) processor |
|
BIOS Manufacturer |
American Megatrends Inc. |
|
Chipset |
Intel Bay Trail-D |
Memory
Memory Type |
1* 204-pin SODIMM Sockets for un-buffered
DDR3/DDR3L(Low Voltage 1.35V)-1333/1600 SDRAM, Max 8GB |
|
Storage |
1* Serial SATA 6Gb/s connectors
1* Mini-SATA 3Gb/s connectors |
|
Operating System |
Windows 7/Windows 8/Windows 10/Linux, Windows 7 English(OEM Cracked) default |
|
Network |
2*RTL8168/8111/8112 Gigabit Ethernet Controller
Optional 300M WiFi with dual antennas |
|
Video |
Intel(R) HD Graphics
Graphics Base Frequency 688 MHz
Graphics Max Dynamic Frequency 854 MHz
support VGA and HDMI full screen HD playback |
|
I/O port |
|
Front panel ports |

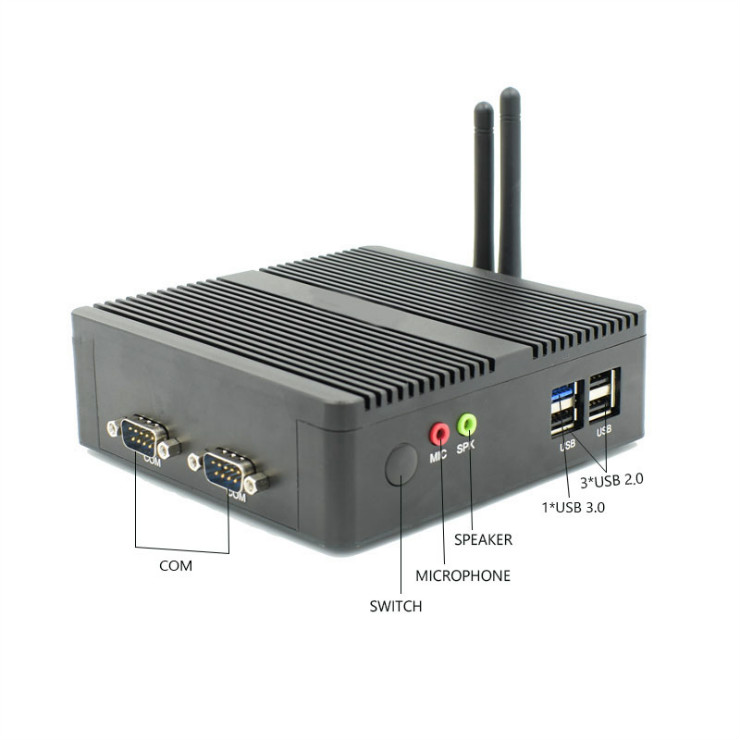

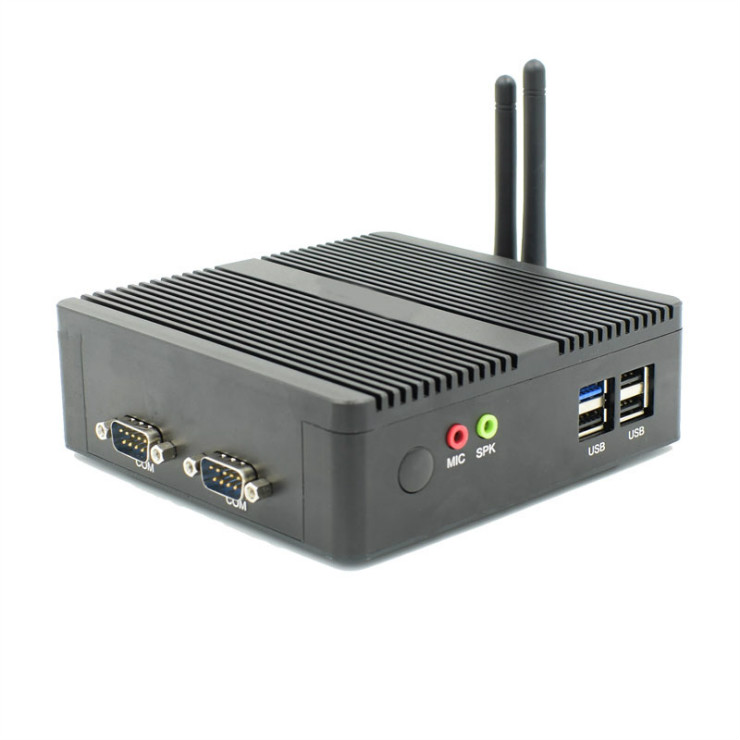

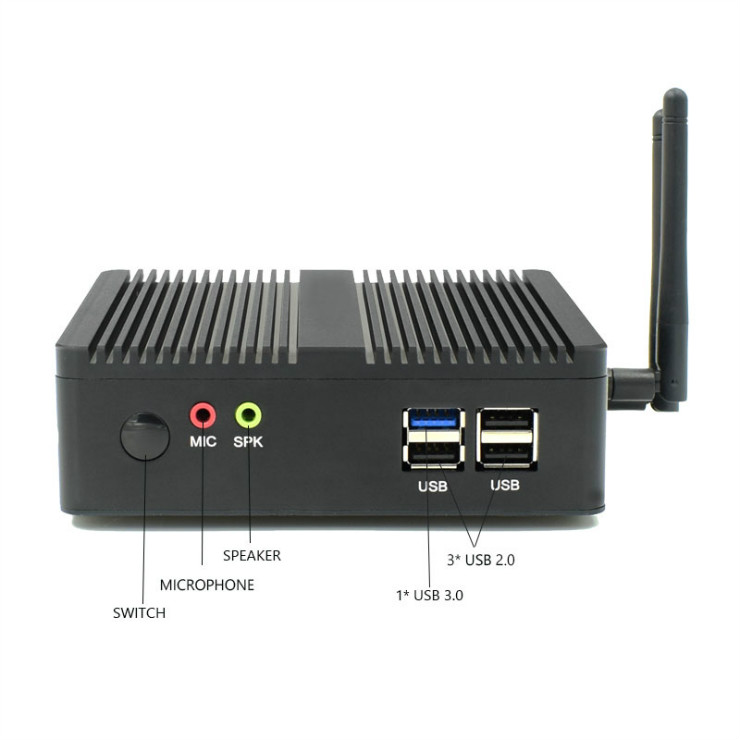

1* Power indicator and switch, 1*MIC, 1*SPK, 3*USB2.0, 1*USB3.0, |
|

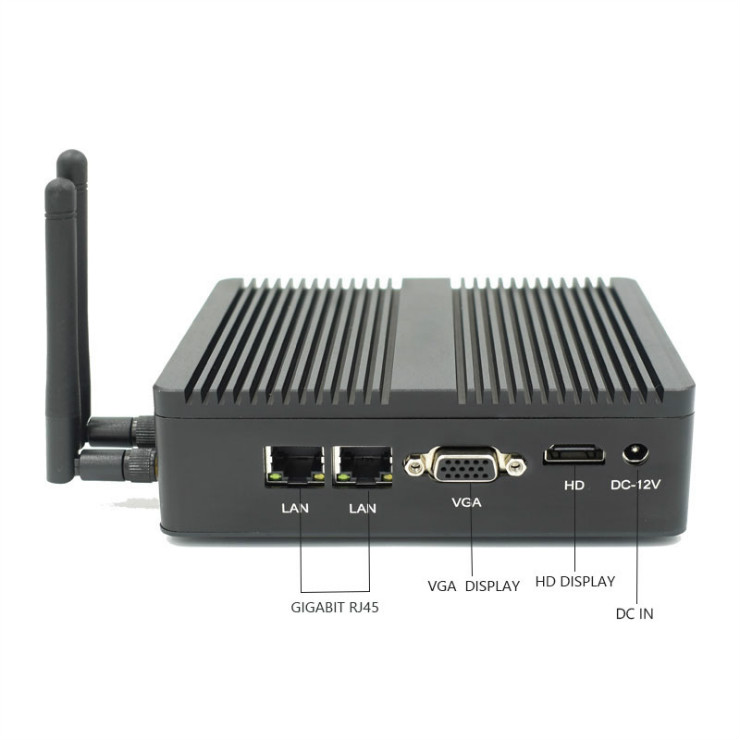

Backside ports |

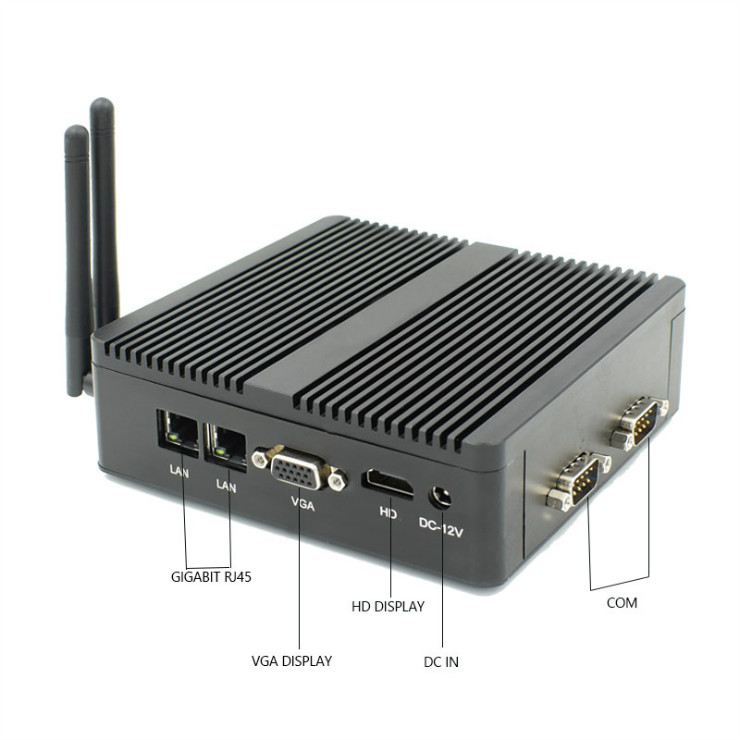

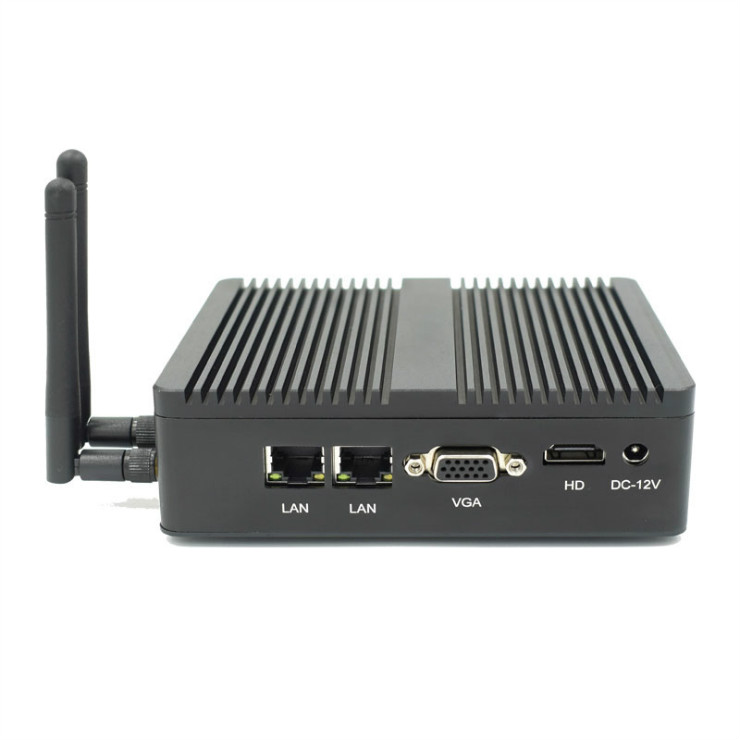

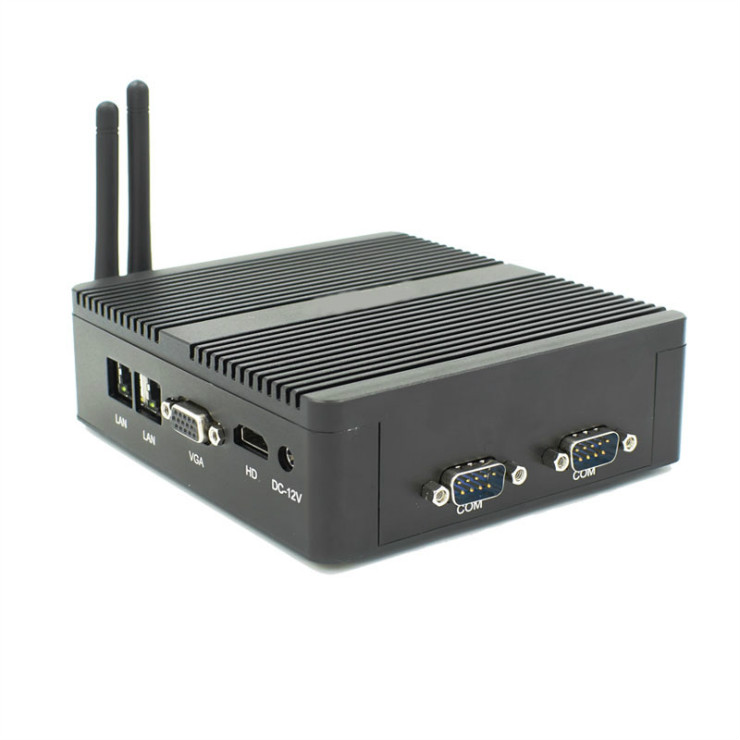

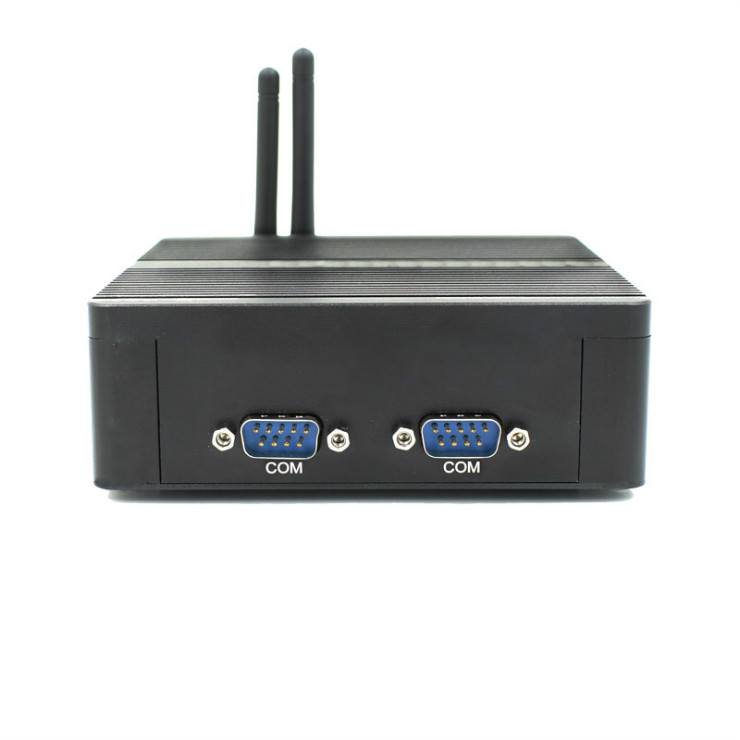

1* DC IN, 1*HDMI, 1*VGA, 2*LAN port(RJ-45),2*RS232 Ports |
|
Internal ports |
1*mini-PCIE port(m-SATA SSD, 3Gbps)
1*mini-PCIE port(WIFI/3G) |
|
Expansion ports |
2*COM, 1* LPT |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC 12V/5A |
|
Operating Temperature |
-10/60 Centigrade |
|
Storage Temperature |
-20/+85 Centigrade |
|
Relative Humidity |
10%~90% (non-condensing) |
|
energy-saving |
Support Energy-saving technology, Speedstep |
|
virtualization |
Support Virtualization technology |
|
64 bit computing |
Support 64 bit computing |
|

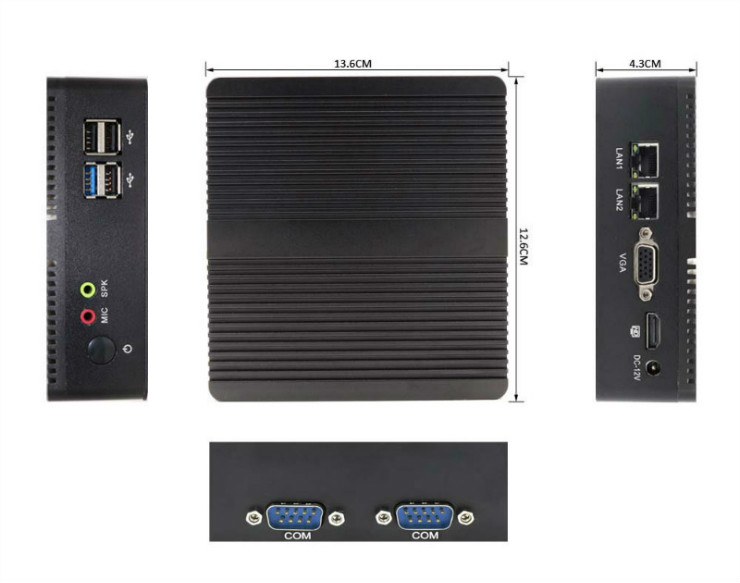

Product Dimension & Details |
|
Size |

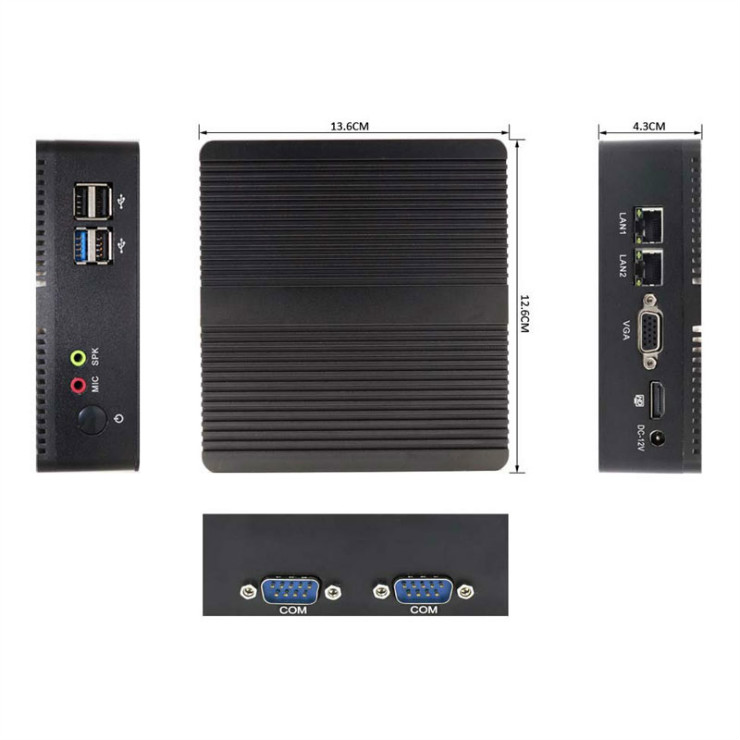

136*126*43MM |
|
Weight |
1.0kg |
|
Consumption |
12~16W |
|
Shell |
All black aluminum alloy |
|
Package Content |
Mini PC, Power Adapter, VESA Mount, Screws |
|
