   Thin Client PC Station -> Ncomputing Series
N300 Thin Client PC Station With 1 PCI card 3 Access Terminals Equal to Ncomputing Xtenda X300
N300 Thin Client PC Station With 1 PCI card 3 Access Terminals Equal to Ncomputing Xtenda X300
Item No.:N300
Catalogue:Eglobal
Units:Unit
Simply description:N300 Thin Client PC Station With 1 PCI card 3 Access Terminals Equal to Ncomputing Xtenda X300
VIP Price:$50.00
Size:11.5*11.5*2.6cm
User Number:Max 30 Users Per HOST PC
Support OS:Windows XP and Media Center Edition 2005, Windows Server 2003, Small Business Server 2003
Quantity: Unit
Buy Favorites
  Detail description

One set N300 has three access terminals, can connect three terminal users. Perfect in multimedia functions except daily office work.

1 monitor+1 keyboard+1 mouse + 1 Multi media Thin Client PC Station Terminal N300=1 traditional desktop computer.

01 Speaker jack

02 PS/2 keyboard

03 PS/2 Mouse

04 VGA monitor port

05 RJ45 port for Cat 5e cable to Ethernet LAN

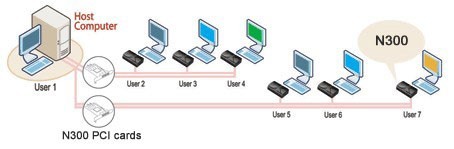

Multimedia Thin Client PC Station Terminal N300 let 2 to 30 more users share one desktop computer, turns 1 PC into 30 more PCs.

Multimedia Thin Client PC Station Terminal N300 virtual desktops share the excess power of standard PCs and make computing simple and affordable. When using Multimedia Thin Client PC Station Terminal N300, you can save money by sharing the cost of a single PC among multiple users. And your users feel like they each have their own PC while they simultaneously share common applications—including web browsers, e-mail, office suites, and multimedia. Every user has their own keyboard, screen, settings, applications, and data files, so their experience is just like it would be if they were working at an independent PC.



Minimum System Requirements

For one N300 PCI card, a host PC with at least the following:

• A 1.3 GHz processor

• 512 MB RAM

• Keyboard, mouse, and monitor required for each access terminal

• Speakers optional for each access terminal (amplified speakers recommended)

For two N300 PCI cards, a host PC with at least the following:

• A 2.4 GHz processor

• 1 GB RAM

• Keyboard, mouse, and monitor required for each access terminal

• Speakers optional for each access terminal (amplified speakers recommended)





  • Multimedia Thin Client PC Station Terminal N300 Save money, time, and aggravation
  1. Efficiently share one PC with unlimited users
  2. Dramatically reduce acquisition & support costs
  3. Easy to set up, maintain, and secure
  4. Flexible Ethernet networking
  5. Supports all Windows professional os
  6. Compact and reliable
  7. Energy-efficient (under 5 watts per user)
  • Multimedia Thin Client PC Station Terminal N300 Specification

Hardware

Size

Access Device:  110*65 *28 mm

Shipping Size: 220*137*47mm

Weight

N130 Terminal: 250g
Shipping Weight: 500g

Power Supply

No external power adapters required

Power through PCI card via Lan cable from HOST directly

Front LED Indicators

Power/Connection: Green LED located on front of access device

Connection to Host PC

Standard Category 5 or 5e UTP cable:  up to 5 meters (16 feet)

Standard Category 6 STP cable:  up to 7 meters (23 feet)

Video Resolution

640x480, 800x600, 1024x768 (at 60 or 75 Hz refresh rate), 1280x1024 (~63 Hz). Up to 16-bit color support.

Audio

Stereo output via speaker port

Data Security

No USB ports on access device ensure absolute data security

USB ports on host PC can be assigned to different users

Internal HW

l            All solid-state design, no moving parts, no fans, no local user storage

l            Eglobal System-on-Chip with SDRAM and flash

l            Embedded Eglobal operating firmware (no local user OS)

Reliability (MTBF)

>>100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)

HW Security

No local user storage

TERMINAL SERVICES SOFTWARE

Max # Users

Per PC

max 7 users

User Software

PC Station terminal services software

Supported Operating

Systems

Microsoft: Windows XP Professional and Media Center Edition 2005

Windows Server 2003, Small Business Server 2003

Linux: several variants (refer to support section of Website for latest supported revisions of Linux)

SYSTEM REQUIREMENTS AND OPTIONS

Kit Contents

EGLOBAL PC STATIONS Kit includes access terminal, power supply, software installation & user’s guide and other peripherals are NOT included and must be purchased separately.
