Basic Information: |
|
CPU |
Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U 2.0GHz Max 3.1GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540. |
|
TDP |
15W |
|
Motherboard |
14.5 x 14.7 cm |
|
BIOS |
American Megatrends Inc. 5.6.5 |
|
Chipset |
Intel Sunrise Point-LP, Intel Skylake-U |
|
Memory |
2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB
DDR3L 1333/1600, LPDDR3 1333/1600 |
|
OS |
Windows 7/Windows 8/Windows 10/Linux |
|
PXE |
YES |
|
Audio |
Intel Skylake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller |
|
Network |
Onboard Intel i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN |
|
Video |
Intel(R) Iris(R) Graphics 540 |
|
Input/output port |
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 12V DC In |
|
LED |
2 x LED |
|
USB |
4 x USB2.0, 4 x USB3.0 |
|
Display |
1 x VGA, 1 x HDMI |
|
LAN |
2 x RJ45 Intel Giga LAN |
|
COM |
6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS |
|
SIM |
1 x embedded SIM card slot onboard |
|
GPIO |
1 x GPIO |
|
Audio |
1 x MIC, 1 x SPK |
|
Storage |
|
|
MSATA |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
|
SATA |
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
|
Wi-Fi |
|
|
Module |
1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G module |
|
Antenna |
2 x inner RF cables and 2 x external antennas |
|
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
DC +12V~+19V, recommend 12V/5A |
|
Operating Temperature |
-20/+75 Centigrade |
|
Storage Temperature |
-40/+80 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|
Product Dimension & Details |
|
Size |
213*255*66mm |
|
Weight |
Net 1.6kg, Gross 2.5kg |
|
Shell |
Silver color aluminum alloy(any customized color for bulk order) |
|

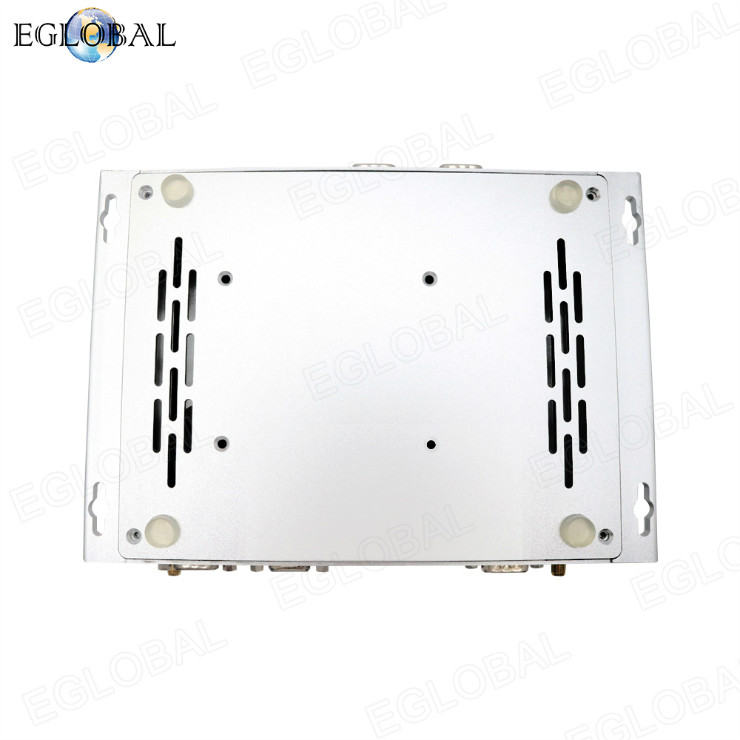

Mounting |
4 Mounting holes on case |
|
Cooling Mode |
Fanless |
|
Functions |
AWAL, Wake On LAN, RTC |
|
Package Content |
|
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
|
Optional |
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
