   Mini Computers -> 6Gen CPU MiniPC

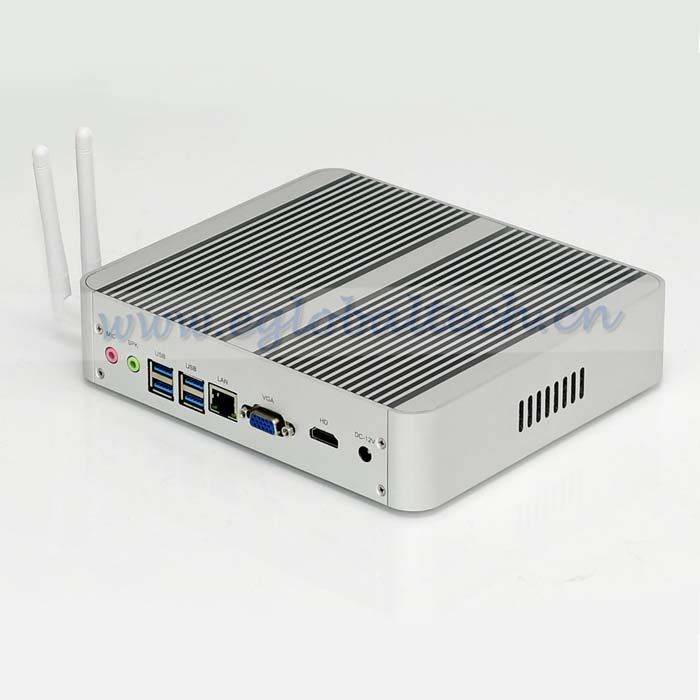

Intel Core i5 6360U Eglobal 6th Gen Kaby Lake Win10 Fanless Mini PC 4K HTPC
Intel Core i5 6360U Eglobal 6th Gen Kaby Lake Win10 Fanless Mini PC 4K HTPC
Item No.:6360E
Catalogue:Eglobal
Units:SET
Simply description:Intel Core i5 6360U Eglobal 6th Gen Kaby Lake Win10 Fanless Mini PC 4K HTPC
VIP Price:$283.54
CPU:Onboard Intel® Core™ i5-6360U Processor
Memory:DDR4-2133, LPDDR3-1866, DDR3L-1600
Storage:SSD: 8G/16G/32G/64G/128G/256G/512G/1TB, HDD: 160G/320G/500G/1TB
Support OS:Windows 10/Linux
WiFi:add 300M WiFi with dual antennas, Bluetooth Optional
Case Material:Brushed Aluminum Alloy
Product Dimensions:208*180*45MM
Color:Silver
OEM:Support
Quantity: SET
Buy Favorites
  Detail description

Product Name: Intel Core i5 6360U Eglobal 6th Gen Kaby Lake Win10 Fanless Mini PC 4K HTPC

You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification: Barebone System

- No RAM
- No Storage
- 300M WIFI with Dual Antennas
-Windows 10/Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping

The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables(for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)

Feature:

Full aluminium silver color shell, Exquisite production craft on ouside design

Fanless system without cooling fan and slim design 208*180*45MM

Low consumption TDP only 15W

Can stand up or can be mounted back of monitor or wall

Can install 1pc Msata SSD and 1pc 2.5” SATA HDD together

Package include the mini pc device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card

General

CPU

Onboard Intel® Core™ i5-6360U Processor

Processor Graphics ‡

Intel® Iris™ Graphics 540

Graphics Base Frequency

300.00 MHz

CPU Technique

14nm

L3 Cache

4MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support calls on function automatically

Support Wake-On-LAN

Chipset

Intel KABYLAKE

Memory

DDR4-2133, LPDDR3-1866, DDR3L-1600

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel Iris Graphics 540(300~1GHz)

I/O port

front panel ports

1* Power indicator and switch, 4*USB2.0

Backside ports

2*WiFi antennas, 1*MIC, 1*SPK, 4*USB3.0, 1*LAN, 1*VGA, 1*HDMI, 1*DC 12V

Internal ports

1*M-SATA3.0 port, support 6Gb/s

2*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

208*180*45MM

Weight

3.0KG

Consumption

15W~28W

Shell

Silver color aluminum alloy

Package Content

Mini PC device, power adapter, a stand holder, a VESA mount(optional), dual WiFi antennas(optional), a HDMI cable( as a gift), a Screw Bag, Warranty Card
