   Mini Computers -> 7th Gen Slim PC
Eglobal Ultra thin micro PC intel core i7 7560U best mini PC for gaming HD Graphics 640 DP HTPC
Eglobal Ultra thin micro PC intel core i7 7560U best mini PC for gaming HD Graphics 640 DP HTPC
Item No.:V200(7560U)
Catalogue:Eglobal
Units:set
Simply description:Latest Slim PC Core i7 7560u Fanless Mini Nuc HTPC XBMC Kodi Windows 10 HD Graphics 640 DP HTPC
CPU:Intel Core i7 7560U 2 cores 4 threads 2.4GHz up to 3.8GHz 4MB cache TDP 15W Intel® HD Graphics 640
Memory:DDR3L,DDR4‐2133/2400,Two SO‐DIMM solts, Support up to 32GB
Storage:a. M.2 NGFF/PCIE 22*80 SSD,UP to 512GB(thin version);b.  M.2 NGFF/PCIE 22*80 SSD+9.5mm 2.5''HDD(thick version)
Support OS:Windows10,  Linux
WiFi:WiFi& Bluetooth
Case Material:Brushed Aluminum Alloy
Product Dimensions:108*113*30mm

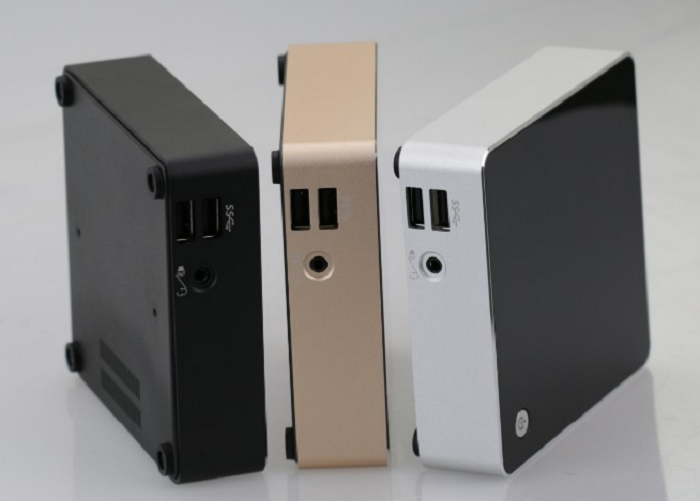

Color:black/golden/silver
OEM:support
Quantity: set
Buy Favorites
  Detail description

You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: NO RAM
- Storage: NO Storage
- Built-in 300M WIFI
- Postage free shipping
- Fan system, with cooling fan
- Case size 108*113*30MM

The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * HDMI Cable
1 * VESA mount&screws

Computer Dimension:
108*113*30MM or 108*113*41MM( add extra US$ 15 for it)
GW: 388g or 530g

Key Features & Benefits:

1.    Fan system or Fanless System, 0.00dB

2.    Appropriate product design: Contracted design style, super mini body and good performance, the heat dissipation capability of stable

3.    Strict ME tolerance control: Full experience tooling design and CNC process good gap control in final system assembly process

4.    Package Content: 1*Mini PC, 1*Power Adapter, 1*VESA mount

5.    Color: Black, Golden, Silver in stock

Features

Specifications

CPU



Intel Core i7 7560U 2 cores 4 threads 2.4GHz up to 3.8GHz 4MB cache TDP 15W Intel® HD Graphics 640

Platform

Intel SKYBAY

Type

Kaby Lake/Skylake

Install Method

FCBGA1356

Level 2 Cache

4MB/3MB

TDP

15W

Chipsets

Intel Kaby LakeU

Memory

DDR3L

DDR42133/2400

Two SO-DIMM solts, Support up to 32GB,

Panel



NA

Storage

Hard Disk

a.  M.2 NGFF/PCIE 22*80

SSD,UP to 512GB(thin version)

b.  M.2 NGFF/PCIE 22*80 SSD+9.5mm

2.5''HDD(thick version)

Graphic

Graphic Controller

Integrated

Communications

Wireless networking

devices

a.  2.4G/5G Wifi B/G/N/AC

b.  Bluetooth

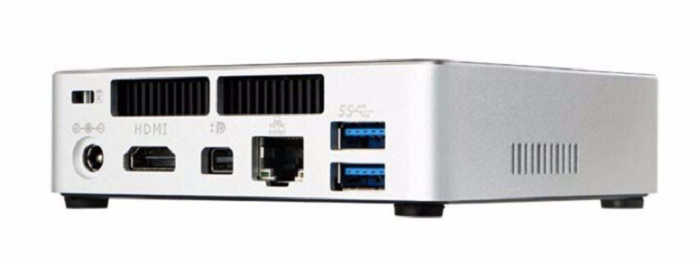

I/O Port



2X USB 2.0 connectors

2X USB 3.0 connectors

1X Headphoneout/ MICin phone jack

1X Mini DP output

1X DC power

1X HDMI output

1X RJ45

Point device



NA

Sensor



NA

Audio Codec

codec

Azalia Codec support 2.1 channel output

Webcam



NA

Status Indication

On/Off/Suspend

LED  ON/OFF/FLASH

security



Kensington Lock

Physical

Outline

Dimension

a. 108*113*30mm

b. 108*113*41mm

Weight

a. 388g

b. 530g

Power

DC

a.19V 40W

b.19V 65W

Battery

NA

Certification



CE/FCC

Operating System



Windows10,  Linux
