   Mini Computers -> Celeron Micro PC
Mini PC Intel Pentium 2117U computador with 8RAM  128GB SSD  Fanless Windows VGA HDMI LAN WIFI Linux
Mini PC Intel Pentium 2117U computador with 8RAM 128GB SSD Fanless Windows VGA HDMI LAN WIFI Linux
Item No.:M2-2117U
Catalogue:Eglobal
Units:set
Simply description:Mini PC Intel Pentium 2117U computador with 8RAM 128GB SSD Fanless Windows VGA HDMI LAN WIFI Linux
VIP Price:$201.00
CPU:Onboard Intel Pentium 2117U Dual Core 2 Thread 1.8GHz
Memory:1* SD-DDR3 SDRAM slot , DDR3/L/-RS 1333/1600, Max 8GB
Storage:SSD: 8G/16G/32G/64G/128G/256G/512G,HDD: 160G/320G/500G/1TB
Support OS:Windows 7/Windows 8/ Windows 10/ Linux
WiFi:Built-in 300M Wifi with dual antennas(B/G/N)
Case Material:Brushed Aluminum Alloy
Product Dimensions:175*127*37MM
Color:black
OEM:support
Quantity: set
Buy Favorites
  Detail description



You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: MICRON 4GB DDR3L RAM
- Storage: RAMAXEL 64GB mSATA SSD
- 300M WIFI with Dual Antennas

       - Linux/Windows 7/Windows 8/ Android

       - DHL/FedEx/UPS/EMS free shipping



The Package includes:

1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)



Key Features & Benefits:



1. Very small, Palm Computer

2. Without cooling fan, Fanless System

3. Support calls on function automatically

4. Support VGA display and HDMI 1080P playback

5. Support Energy-saving, 64bit computing and Virtualization technology

6. It can be mounted back of monitor by VESA Mount

7. Can install 1pc Msata SSD and 1pc 2.5” SATA HDD together





General

       CPU

Onboard Intel Pentium 2117U Dual Core 2 Thread 1.8GHz

CPU(FSB)

100MHz

        Lithography

                                                                         22 nm

           Max TDP

17W

L2 Cache

2MB

Instruction Set

64-bit

BOIS

AMI BIOS, ACPI supported

Chipset

IVY

Memory

Memory Type

1* SD-DDR3 SDRAM slot

DDR3/L/-RS 1333/1600, Max 8GB

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G

HDD: 160G/320G/500G/1TB

Operating System

Windows 7/Windows 8/ Windows 10/ Linux

Audio

ALC662 chip, 6 channel sound

Network

Onboard RTL8168E 10/100Mbps/1000Mbps BaseT LAN

Optional 300M WIFI with dual antenna or 300M WiFi&Bluetooth

Video

Intel HD Graphics

Graphics Base Frequency 350.00 MHz

Graphics Max Dynamic Frequency 1.00 GHz

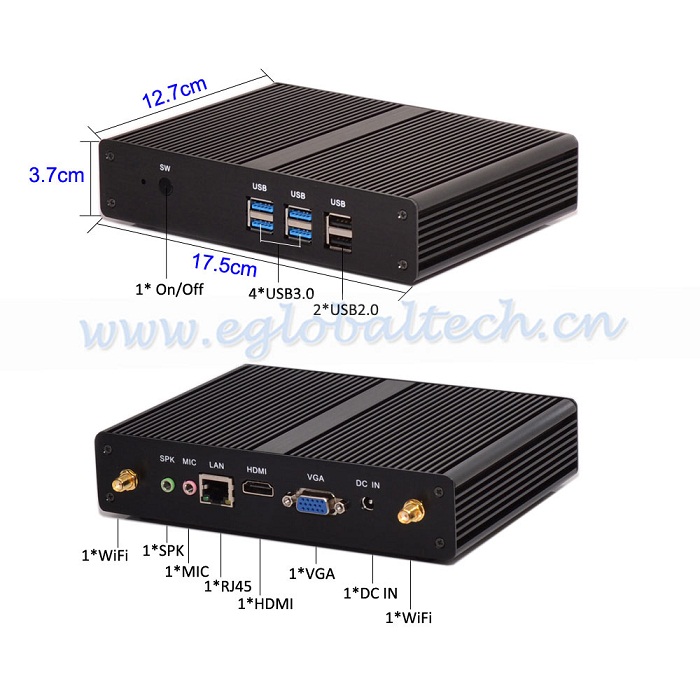

I/O port

front panel ports

1* Power indicator and switch, 4*USB3.0, 2*USB2.0

Backside ports

1* DC IN, 1*HDMI port, 1*VGA port, 1*LAN(RJ-45), 1*MIC, 1*SPK

Internal ports

1*mini-PCIE port(m-SATA SSD, 3Gbps)

1*mini-PCIE port(WIFI)

1* SATA port

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/3~6A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+80 Centigrade

Relative Humidity

10%~90% (non-condensing)

energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

virtualization

Support Virtualization technology

hyper-threading

NO

Product Dimension & Details

Size

175*127*37MM

Weight

1.0kg

Consumption

17W

Shell

All black aluminum alloy

Package Content

Mini PC, Power Adapter, a Stand holder, VESA Mount(optional)

Certification

CE, FCC, ROHS
