   Mini Computers -> Celeron Micro PC
SOYO Motherboard Fanless HTPC Kodi Quod Core Mini PC Windows 10 VGA HDMI COM USB3.0 Optical Computer
SOYO Motherboard Fanless HTPC Kodi Quod Core Mini PC Windows 10 VGA HDMI COM USB3.0 Optical Computer
Item No.:V2-N3150
Catalogue:Eglobal
Units:Set
Simply description:SOYO Motherboard Fanless HTPC Kodi Quod Core Mini PC Windows 10 VGA HDMI COM USB3.0 Optical Computer
VIP Price:$200.45
CPU:Intel Celeron N3150 1.6GHz Max 2.08GHz Quad Core 4 thread
Memory:4GB RAM DDR3L 1.35V Voltage, can update 16GB RAM
Storage:RAMAXEL 64GB SSD, can update 512GB SSD or 1TB HDD
Support OS:Windows & Linux
WiFi:Built-in 300M Wifi with dual antennas(B/G/N)
Case Material:Brushed Full Aluminum Alloy
Product Dimensions:197*197*37MM
Color:Silver
OEM:Support
Quantity: Set
Buy Favorites
  Detail description

You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:

- RAM: MICRON 4GB DDR3L RAM

- Storage: RAMAXEL 64GB mSATA SSD

- 300M WIFI with Dual Antennas

- DHL/FedEx/UPS/EMS/Postage free shipping



The Package includes:

1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable
1 * VESA mount(optional)



EGLOBAL Fanless Mini PCs series are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

Main advantages:

1.     Small size: all EGLOBAL mini pcs smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

2.     Durability: all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.

3.     Low power: all the EGLOBAL mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.

4.     Universal performance: EGLOBAL mini pcs compatiable with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.



Key Features:

  • CPU: Intel® Celeron® Processor N3150 (2M Cache, up to 2.08 GHz)
  • RAM: onboard 2G/4G/8G DDR3L 1600MHz Optional;
  • Storage: SSD and HDD Optional, max support 1*mSATA3 SSD and 1*2.5 inch laptop HDD, no limitation on storage capacity;

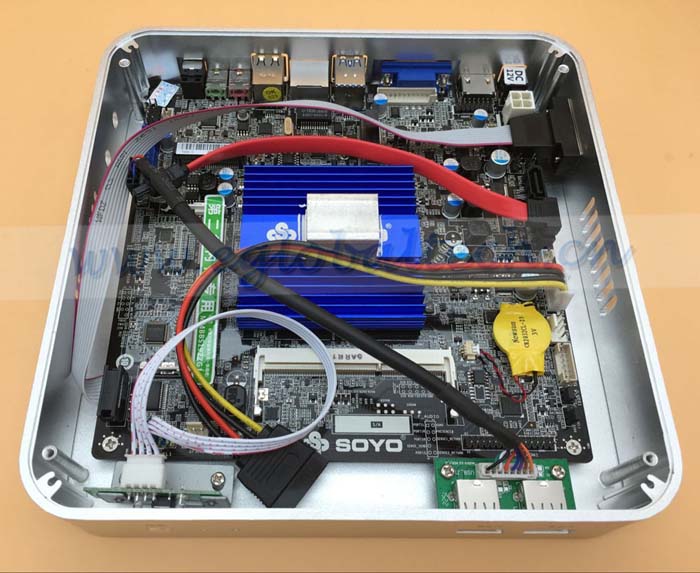

  • Motherboard: SOYO brand, Intel Braswell SOC Express chipset

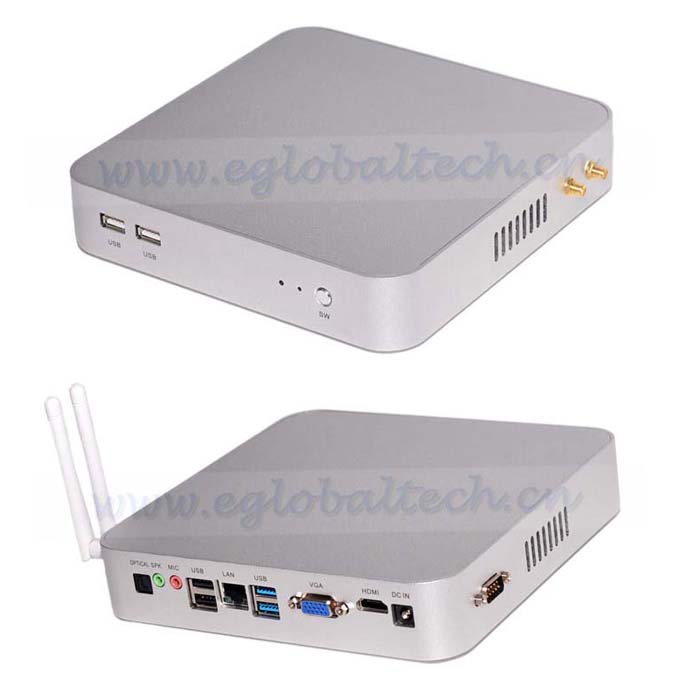

  • I/O: 1* Power indicator and switch, 2* USB3.0; 4*USB2.0 ports, 1*MIC, 1*SPK, 1* Optical Audio Port, 1* DC IN, 1*HDMI port, 1* VGA port, 1*RJ45 Realtek RTL8168E Gigabit LAN Port, 1* RS232 COM, 2* Wifi Antennas.
  • Operating System: Windows 7, 8, 10 & Linux Compatible, suggest Kodi(XBMC) with Openelec preinstalled for less than 16GB SSD, up to 32GB SSD suggest Win 10;
  • Language: Multi-Language;
  • Feature: Fanless;
  • Wireless: 300MB Wifi with 2 Antennas;
  • Bluetooth: optional
  • HD Out put: HDMI 4K out put,
  • LAN port: 1*Gigabit RJ45 port speed up to 1Gbps;
  • Case Material: Brushed Aluminum Alloy;

CPU Performance

  • # of Cores: 4
  • # of Threads: 4
  • Processor Base Frequency: 1.6 GHz
  • Burst Frequency: 2.08 GHz
  • TDP: 6 W
  • Scenario Design Power (SDP): 4 W

Graphics Specifications

  • Processor Graphics: Intel® HD Graphics
  • Graphics Base Frequency: 320 MHz
  • Graphics Burst Frequency: 640 MHz
  • DirectX* Support
  • OpenGL* Support
  • Intel® Quick Sync Video
  • Intel® Clear Video HD Technology
  • Intel® Clear Video Technology
  • Intel® Wireless Display

Power and Working Environment:

  • Input: DC100-240V AC/50-60Hz;
  • Output: DC 12V~3A/5A;
  • Operating Temperature: 0/70 Centigrade(32F~140F);
  • Storage Temperature: -20/+85 Centigrade;
  • Relative Humidity: 0%~90% (non-condensing);
  • Energy-saving: Support Energy-saving technology, Speedstep;
  • 64 bit computing: Support 64 bit computing;
  • Virtualization: Support Virtualization technology;
  • Hyper-threading: Support Hyper-Threading;
  • Consumption: 15W;

Advanced Technologies

  • Secure Boot
  • Intel® Virtualization Technology (VT-x)
  • Intel® Virtualization Technology for Directed I/O (VT-d)
  • Intel® VT-x with Extended Page Tables (EPT)
  • Intel® 64
  • Idle States
  • Enhanced Intel SpeedStep® Technology
  • Thermal Monitoring Technologies
  • Intel® HD Audio Technology
  • Intel® Identity Protection Technology
