   Mini Computers -> 5Gen CPU Nuc PC
Fanless Nuc PC Core i7 5500u Intel HD 5500 GPU 82574L Gigabit Lan HDMI DP Mini HTPC Linux Computer
Fanless Nuc PC Core i7 5500u Intel HD 5500 GPU 82574L Gigabit Lan HDMI DP Mini HTPC Linux Computer
Item No.:V6-5500U
Catalogue:Eglobal
Units:set
Simply description:Fanless Nuc PC Core i7 5500u Intel HD 5500 GPU 82574L Gigabit Lan HDMI DP Mini HTPC Linux Ubuntu Computer
VIP Price:$391.00
CPU:Intel Core i7-5500U 2.4GHz Dual Core Four Thread Max 3.0MHz CPU
Memory:Kingston 8GB DDR3L RAM, can update 16GB RAM
Storage:Kingston 128GB SSD, can update 512GB SSD
Support OS:Windows & Linux, Pre-install XPE or Win7 Embedded
WiFi:Built-in 300M Wifi(B/G/N)
Case Material:Brushed Aluminum Alloy
Product Dimensions:110*110*30MM
Color:Black
OEM:Support
Quantity: set
Buy Favorites
  Detail description

You can buy sample unit to test directly if PayPal is available for you. The link is for the following Specification:
- RAM: Kingston 8GB DDR3L RAM
- Storage: Kingston 128GB mSATA SSD
- Built-in 300M WIFI
- Postage free shipping

The Package includes:
1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * HDMI Cable
1 * VESA mount&screws

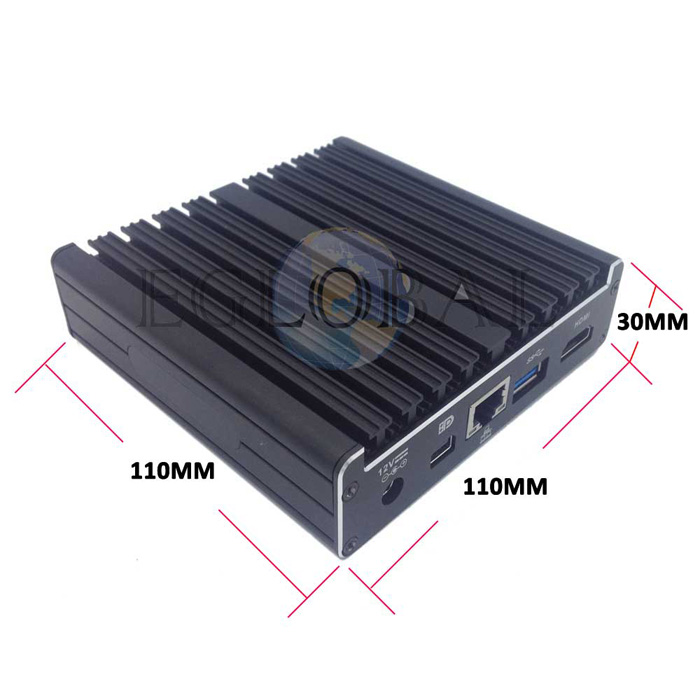

Computer Dimension:

110*110*30MM

GW: 300g



Key Features & Benefits:

  • Without cooling fan, Fanless System
  • Support 3D games and support DirectX 11
  • Support calls on function automatically
  • Support HDMI 1080P, 4K HD DP, 3D Blu-ray
  • Support Energy-saving, 64bit computing, Hyper-Threading and Virtualization technology
  • Can install 1pc SSD

CPU Performance

  • # of Cores: 2
  • # of Threads: 4
  • Processor Base Frequency: 2.4 GHz
  • Max Turbo Frequency: 3 GHz
  • TDP: 15 W
  • Configurable TDP-down Frequency: 600 MHz
  • Configurable TDP-down: 7.5 W

Power and Working Environment:

  • Input: DC100-240V AC/50-60Hz;
  • Output: DC 12V~3A/5A;
  • Operating Temperature: 0/70 Centigrade(32F~140F);
  • Storage Temperature: -20/+85 Centigrade;
  • Relative Humidity: 0%~90% (non-condensing);
  • Energy-saving: Support Energy-saving technology, Speedstep;
  • 64 bit computing: Support 64 bit computing;
  • Virtualization: Support Virtualization technology;
  • Hyper-threading: Support Hyper-Threading;
  • Consumption: 15W;

Graphics Specifications

  • Processor Graphics: Intel® HD Graphics 5500
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 950 MHz
  • DirectX* Support: 11.2
  • OpenGL* Support: 4.3
  • Intel® Quick Sync Video
  • Intel® InTru™ 3D Technology
  • Intel® Flexible Display Interface (Intel® FDI)
  • Intel® Clear Video HD Technology
  • Intel® Clear Video Technology
  • Intel® Wireless Display
  • Intel® Insider™

Advanced Technologies:

  • Intel® Turbo Boost Technology: 2.0
  • Intel® Hyper-Threading Technology
  • Intel® Virtualization Technology (VT-x)
  • Intel® Virtualization Technology for Directed I/O (VT-d)
  • Intel® VT-x with Extended Page Tables (EPT)
  • Intel® 64
  • Idle States
  • Enhanced Intel SpeedStep® Technology
  • Thermal Monitoring Technologies
  • Intel® Fast Memory Access
  • Intel® Flex Memory Access
  • Intel® Identity Protection Technology
  • Intel® Small Business Advantage
  • Intel® Smart Response Technology

General

CPU

Onboard Intel Core i7-5500U 2.4GHz Dual Core Four Thread Max 3.0MHz(Turbo boost Technology) processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

4MB, CPU Integrated

BOIS

American Megatrends Inc.

5.6.5 version

Motherboard

CRESCENTBAY

Chipset

Intel Broadwell-U

Memory

2* SO-DIMM DDR3L Slot, Dual Channel, DDR3L 1333/1600

Support 4GB/8GB/16GB

Storage

Msata SSD: 8G/16G/32G/64G/128G/256G/512G

Operating System

Windows 7/Windows 8/Windows 10/Linux

Audio

Azalia Codec support 2.1 channel output

Network

Intel(R) 82574L Gigabit Network Connection

10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 5500

I/O port

front panel ports

1* Power indicator and switch, 2*USB3.0, 1* Headphone-out/ MIC-in phone jack

1* IR Receiver

Backside ports

1* DC IN, 1*HDMI, 1*LAN port(RJ-45), 1*Mini DP port, 1*USB3.0

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI, Bluetooth)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

virtualization

Intel VT-x

hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

110*110*30MM

Weight

NW: 300g

GW: 1.5kg

Consumption

15W

Shell

black color aluminum alloy

Package Content

Mini PC device, Power Adapter, a VESA Mount

Certification

CE, FCC, ROHS
